nginx-ingress-controller反向代理踩坑记
# 问题一:
# 1.三级等保,Spring Boot Actuator的漏洞文章 (opens new window)
# 1.1通过nginx返回页面解决
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: demo-prod
namespace: prod
annotations:
nginx.ingress.kubernetes.io/server-snippet: |
location ~ /actuator {
return 403;
}
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10

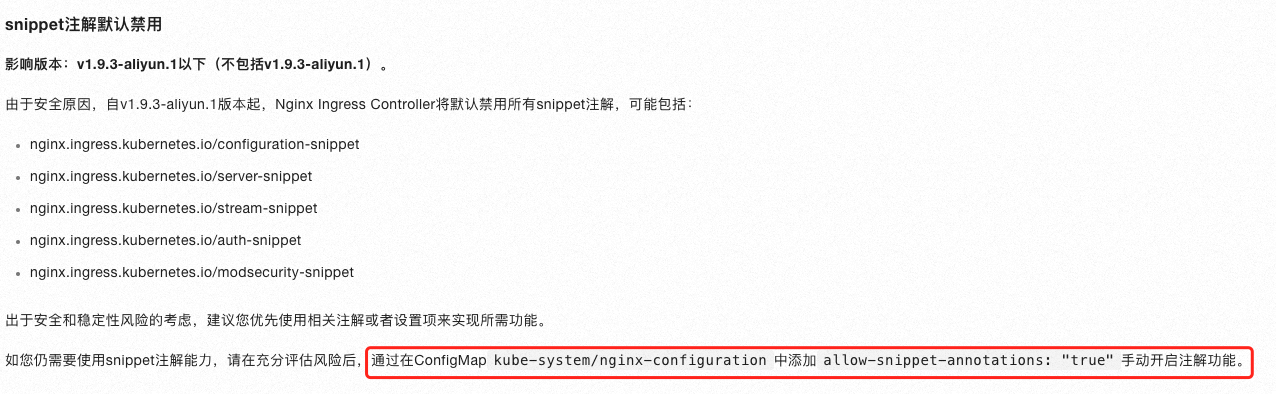

# 1.2生产环境用阿里云ack,需要手动开启snippet注解能力 (opens new window)
# 问题二:
# 2.反省代理呼叫中心 (opens new window)的api,K8S VERSION:v1.17.9
# 2.1 通过snippet的注解来实现proxy_pass
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: web-base
annotations:
kubernetes.io/ingress.class: "nginx"
prometheus.io/http_probe: "true"
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/app-root: /login
nginx.ingress.kubernetes.io/server-snippet: |
location ~ /actuator {
return 403;
}
location ~ /comm {
proxy_pass http://www.sobot.com;
proxy_set_header Host 'www.sobot.com';
}
nginx.ingress.kubernetes.io/use-regex: "true" # 启用了正则表达式支持
spec:
backend:
serviceName: gateway
servicePort: 11001
rules:
- host: xxx.com
http:
paths:
- path: /base/
backend:
serviceName: web-base
servicePort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# 2.2 查看nginx-ingress-controller配置文件是否生效
[root@k8s-master ~]# kubectl exec -it -n ingress-nginx nginx-ingress-controller-996cdf458-2sx99 -- /bin/bash
www-data@k8s-node01:/etc/nginx$ cat nginx.conf|grep -A 10 "comm"
location ~ /comm {
proxy_pass http://www.sobot.com;
proxy_set_header Host 'www.sobot.com';
}
if ($uri = /) {
return 302 /wonder/login;
}
location /web-util-mxgraph-dashboard/ {
www-data@k8s-node01:/etc/nginx$
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14

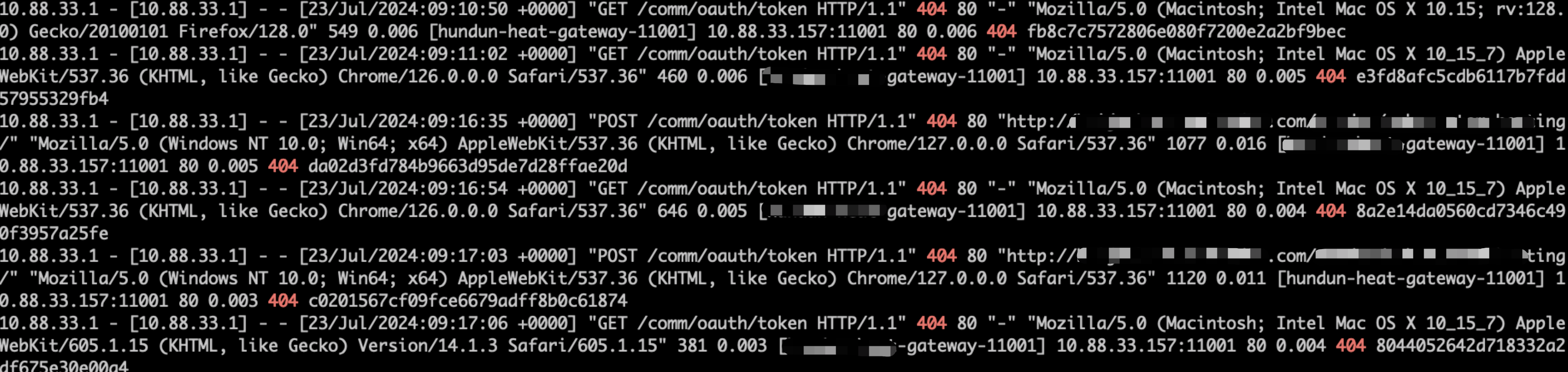

# 2.3 访问发现,页面都是404,查看nginx-ingress-controller日志发现请求都发到gateway了
[root@k8s-master ~]# kubectl logs -f -n ingress-nginx nginx-ingress-controller-996cdf458-gl2k9
1

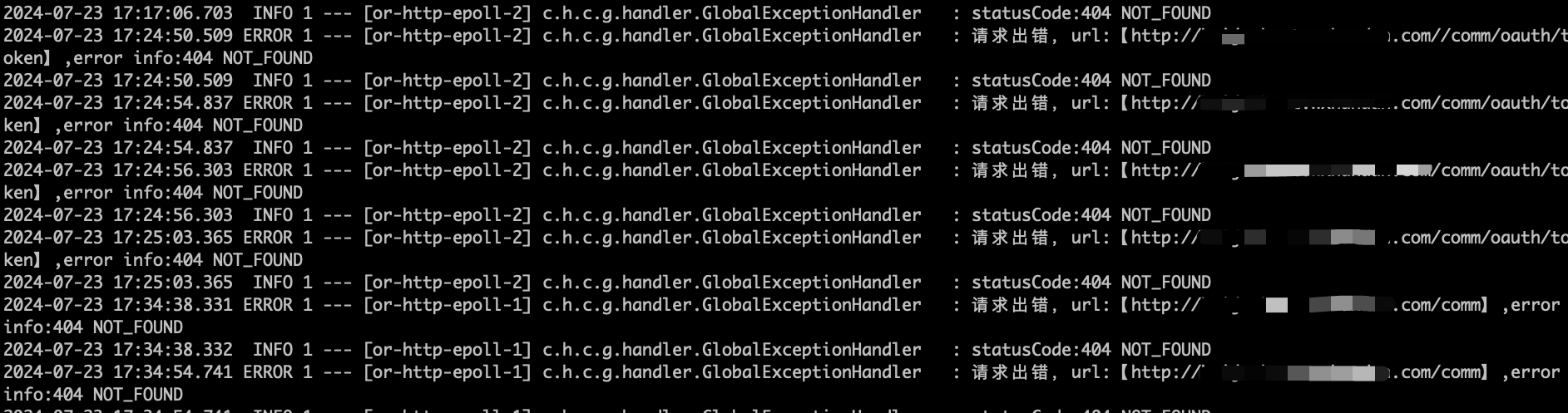

# 2.4 查看gateway的日志
[root@k8s-master ~]# kubectl logs -f gateway-77f7d486c8-8gbf4
1
# 2.5 对比发现是启用了use-regex的annotations,关闭即可正常使用
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: web-base
annotations:
kubernetes.io/ingress.class: "nginx"
prometheus.io/http_probe: "true"
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/app-root: /login
nginx.ingress.kubernetes.io/server-snippet: |
location ~ /actuator {
return 403;
}
location ~ /comm {
proxy_pass http://www.sobot.com;
proxy_set_header Host 'www.sobot.com';
}
spec:
backend:
serviceName: gateway
servicePort: 11001
rules:
- host: xxx.com
http:
paths:
- path: /base/
backend:
serviceName: web-base
servicePort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# 问题三：
本以为本次需求到此结束,没想到...周五下班电话响个不停,https://xxx.com/configure2/v2/mgnt/mxgraph-data/command接口之前正常,现在访问是404,其次会跳转到智齿官网。
# 3.1 回忆了下最近变动,只加了server-snippet。仔细观察发现该接口是commxxx开头的会模糊匹配从而走到proxy_pass,修改配置如下
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: web-base
annotations:
kubernetes.io/ingress.class: "nginx"
prometheus.io/http_probe: "true"
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/app-root: /login
nginx.ingress.kubernetes.io/server-snippet: |
location ~ /actuator {
return 403;
}
location ~ /comm/ { # 匹配以 /comm/ 开头的请求
proxy_pass http://www.sobot.com;
proxy_set_header Host 'www.sobot.com';
}
spec:
backend:
serviceName: gateway
servicePort: 11001
rules:
- host: xxx.com
http:
paths:
- path: /base/
backend:
serviceName: web-base
servicePort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# 问题四:
再续前缘,周一早餐正常上班,发现nginx-ingress-controller的pod重启了,那首当其冲的当然是先倒杯水去。
# 4.1 nginx-ingress-controller一直循环重启,心里简直🦙,大早上刚来就...,真是天生🐮🐴,紧接着开发反馈开发环境的登陆页404,项目测试环境反馈页面异常返回502(以为是后端的问题,看下请求没到前端,内心os:🦙),着手排查nginx-ingress-controller
[root@k8s-master ~]# kubectl logs -f -n ingress-nginx nginx-ingress-controller-996cdf458-nsnsq
1

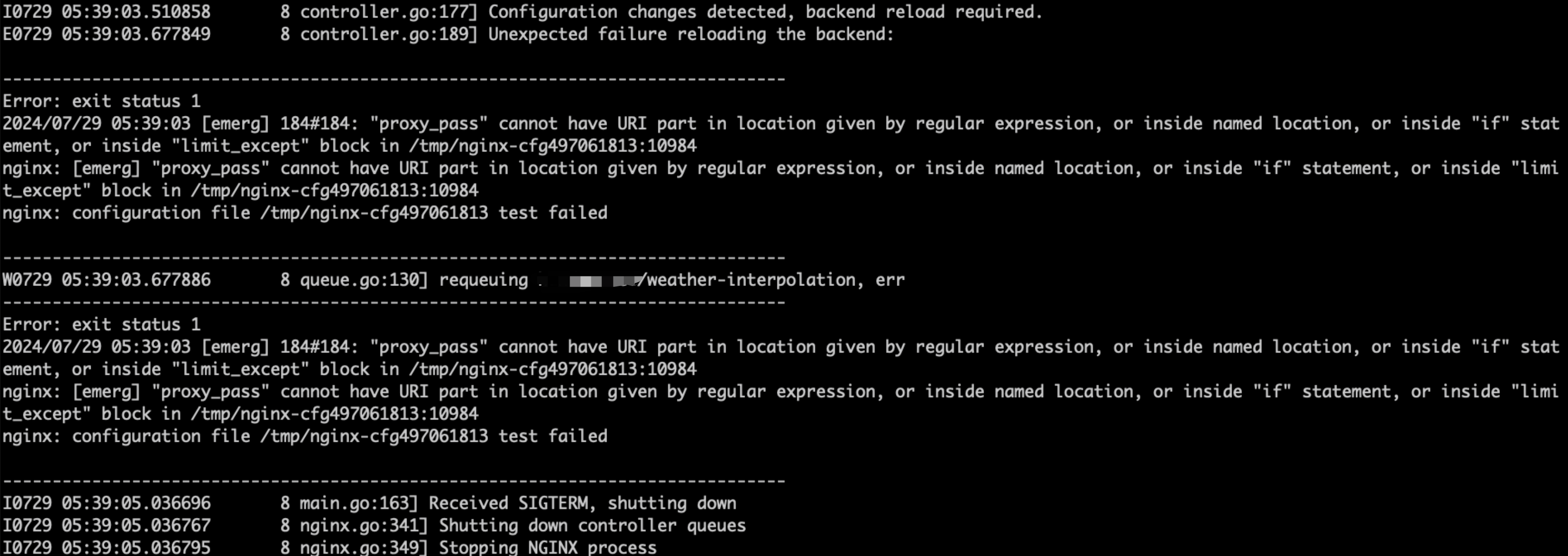

# 4.2 如图日志,错误信息指出，在正则表达式定义的位置proxy_pass 指令不能包含 URI 部分,改改改...
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: web-base
annotations:
kubernetes.io/ingress.class: "nginx"
prometheus.io/http_probe: "true"
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/app-root: /login
nginx.ingress.kubernetes.io/server-snippet: |
location ~ /actuator {
return 403;
}
location /comm/ { # 匹配以 /comm/ 开头的请求
proxy_pass http://www.sobot.com;
proxy_set_header Host 'www.sobot.com';
}
spec:
backend:
serviceName: gateway
servicePort: 11001
rules:
- host: xxx.com
http:
paths:
- path: /base/
backend:
serviceName: web-base
servicePort: 80
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# 4.3 回顾: 发现本次出现问题的,都是🌹问题三🌹 修改完配置后,前端重新发布的后出现的故障.因为我们发布前端的时候都会重新生成ingress的规则.当有新建删除 ingress、更新证书等操作时，nginx-ingress 会触发 nginx reload。
