nginx-ingress-controller开启tcp/udp

目前有几个服务走的TCP协议走的是IP:PORT的模式,现在服务要跨云迁移,弊端就彻底体现出来,想着趁现在迁移优化下,现场的设备也不是特别多,改动起来还是很方便的。

# 1. 用的ACK,nginx-ingress-controller默认开启 TCP 和UDP

[root@manager ~]# kubectl get deployments.apps -n kube-system nginx-ingress-controller -oyaml
apiVersion: apps/v1
kind: Deployment
....
      containers:
      - args:
        - /nginx-ingress-controller
        - --election-id=ingress-controller-leader-nginx
        - --ingress-class=nginx
        - --watch-ingress-without-class
        - --controller-class=k8s.io/ingress-nginx
        - --configmap=$(POD_NAMESPACE)/nginx-configuration
        - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services # tcp
        - --udp-services-configmap=$(POD_NAMESPACE)/udp-services # udp
        - --annotations-prefix=nginx.ingress.kubernetes.io
        - --publish-service=$(POD_NAMESPACE)/nginx-ingress-lb
        - --enable-annotation-validation
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        - --v=2
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
....

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 2. 自建集群的话需要创建下面2个configmap

[root@manager ~]# cat tcp-services.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: tcp-services
  namespace: kube-system

[root@manager ~]# cat udp-services.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: udp-services
  namespace: kube-system

1
2
3
4
5
6
7
8
9
10
11
12
13

# 3. 配置TCP的ConfigMap

[root@manager ~]# kubectl edit cm -n kube-system tcp-services
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
data: # 默认没有data
# 对外暴露的端口:应用所在的namespace/应用的service name:应用的service port
  "7070": prod/xm-sentor:7070
kind: ConfigMap
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"ConfigMap","metadata":{"annotations":{},"name":"tcp-services","namespace":"kube-system"}}
  name: tcp-services
  namespace: kube-system

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# 4. 更改nginx-ingress的service，声明tcp和udp用的端口号

[root@manager ~]# kubectl edit  svc -n kube-system nginx-ingress-lb
...
  ports:
  - name: http
    nodePort: 31297
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    nodePort: 32434
    port: 443
    protocol: TCP
    targetPort: 443
  - name: xm-sensor # 新增
    nodePort: 31417
    port: 7070
    protocol: TCP
    targetPort: 7070
  selector:
    app: ingress-nginx
 ...

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

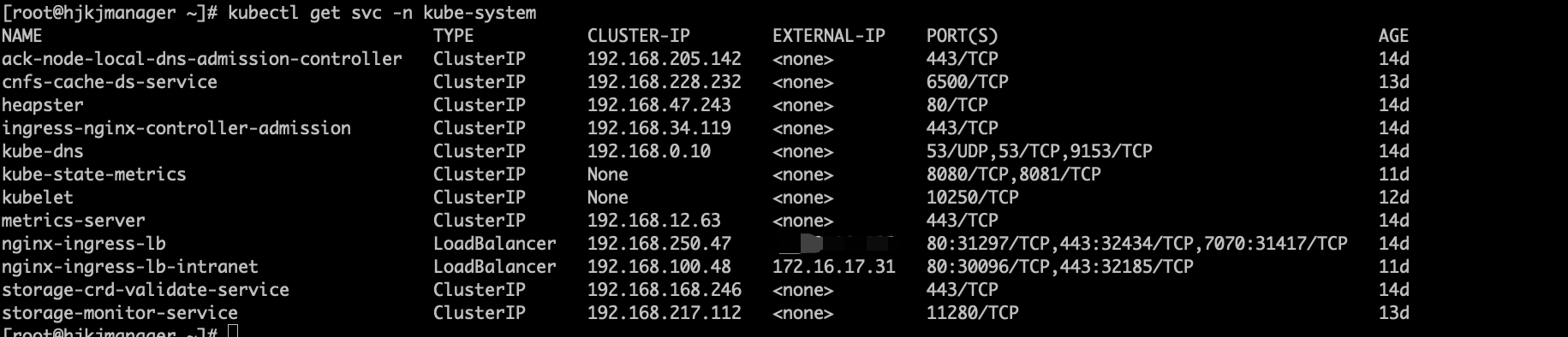

# 5. 后续可以改IP解析个域名,现场地址改为: 域名:7070

#nginx-ingress-controller
